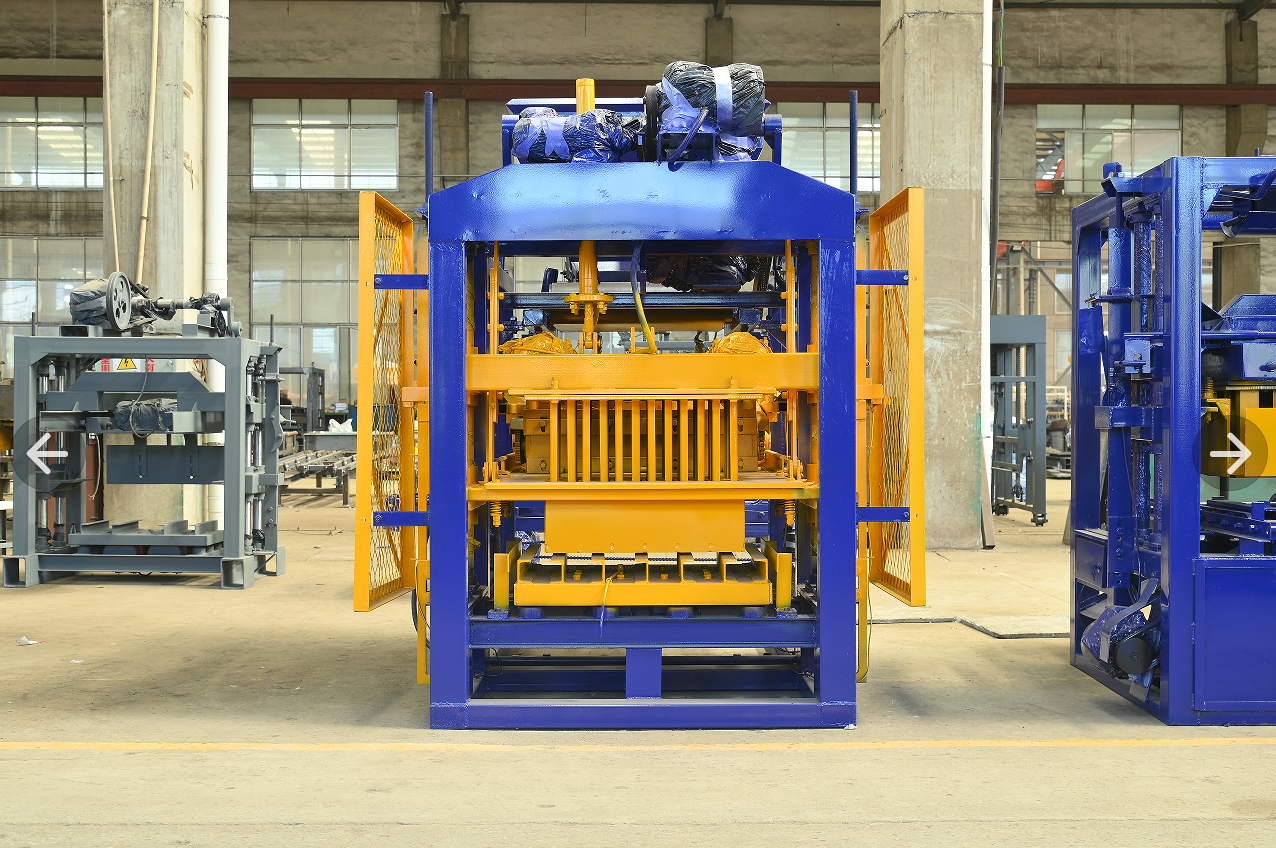

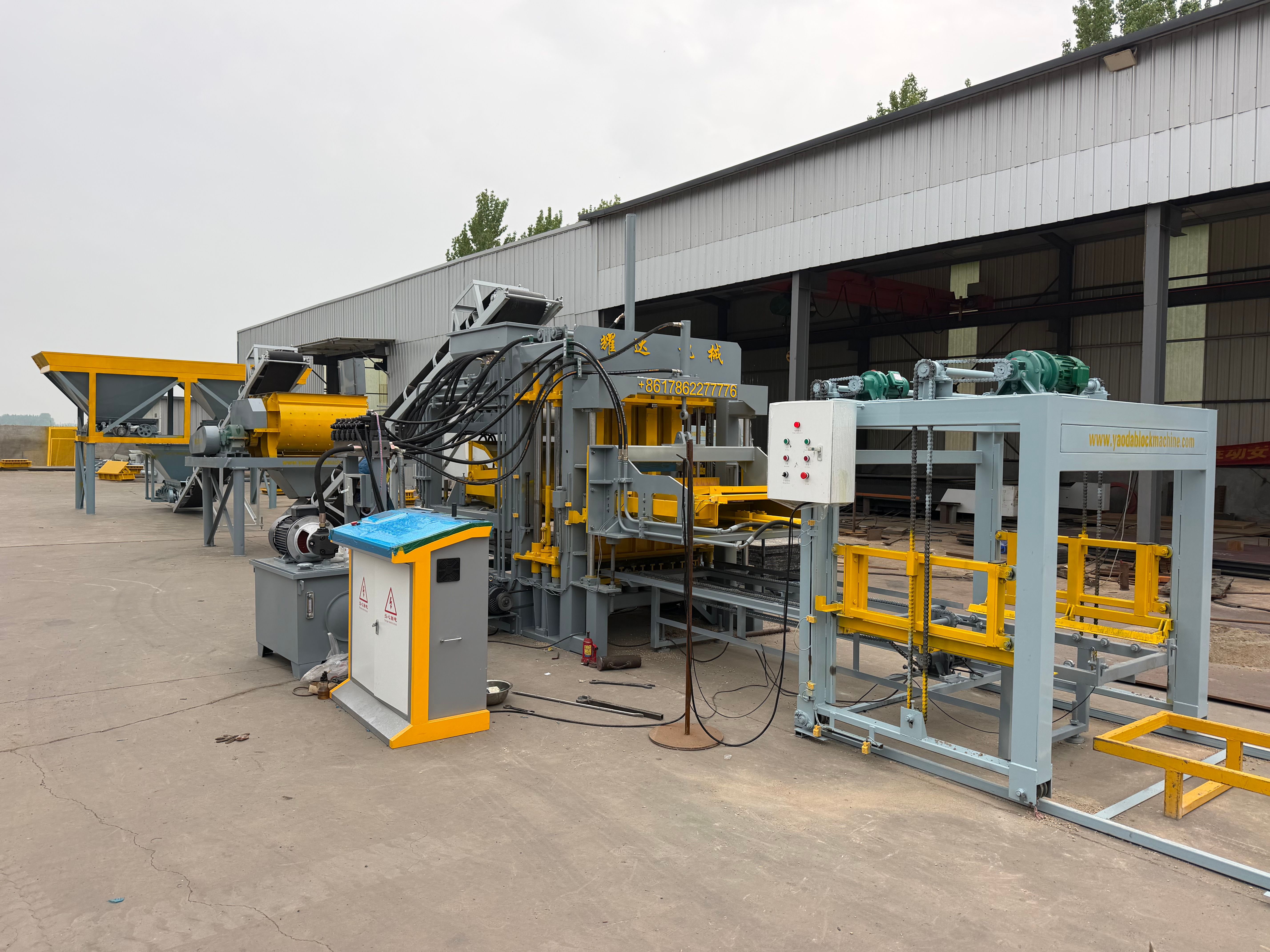

The overall power of a medium-sized brick making machine is generally between 30-50kW, which has lower energy consumption compared to large machines. The equipment size is usually around 3000 × 2000 × 2500mm, and the factory covers an area of about 200-500 square meters to meet production needs (including raw material stacking and finished product storage areas). The equipment procurement cost is about 100000 to 500000 yuan, which is much lower than that of large-scale production lines and suitable for small and medium-sized investors to enter the brick production industry.

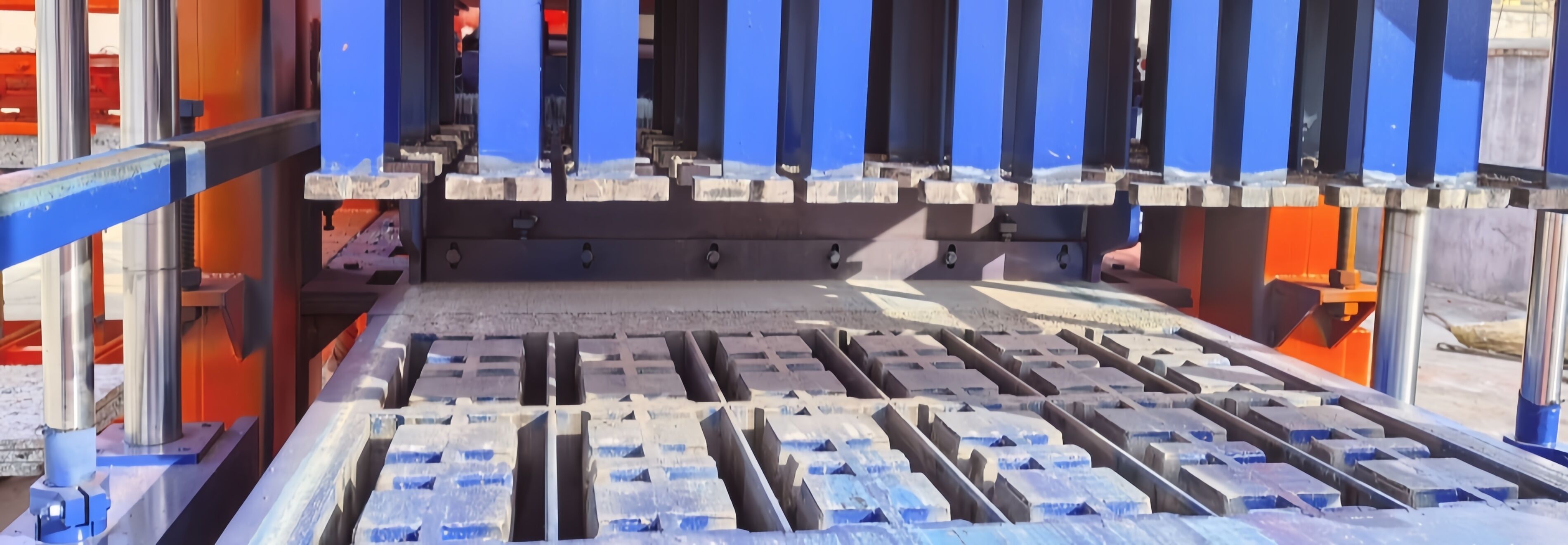

The brick-making machine molds are precisely machined, ensuring uniform mold gaps and minimal dimensional errors in the formed blocks (within ±0.5mm), resulting in a smooth surface. The same brick-making machine, when paired with different molds, can produce a variety of products including standard bricks, hollow bricks, perforated bricks, curb stones, and slope protection bricks, and is compatible with various fully automatic and semi-automatic brick-making machines.

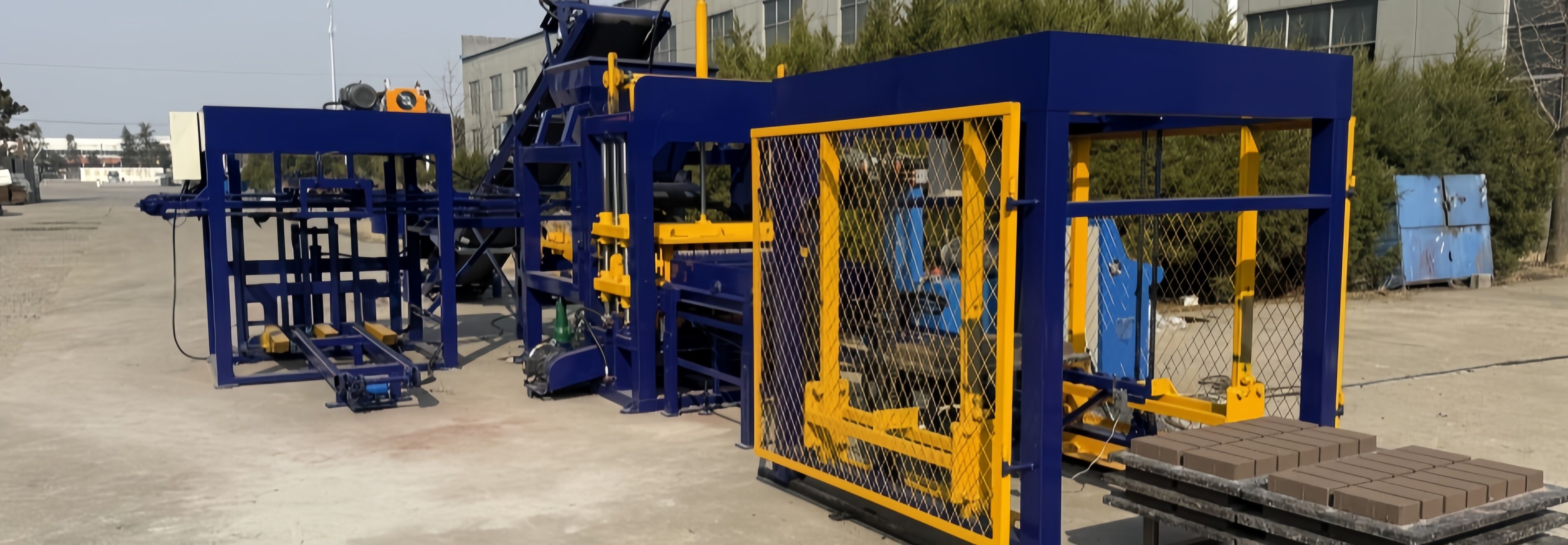

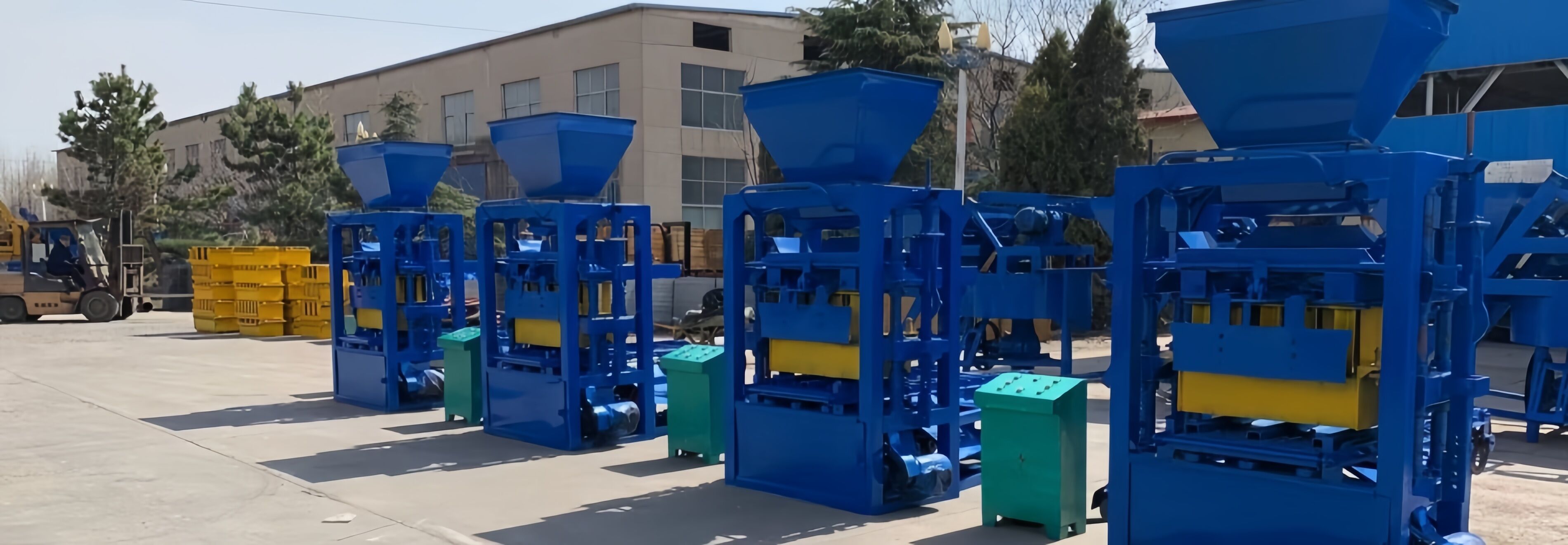

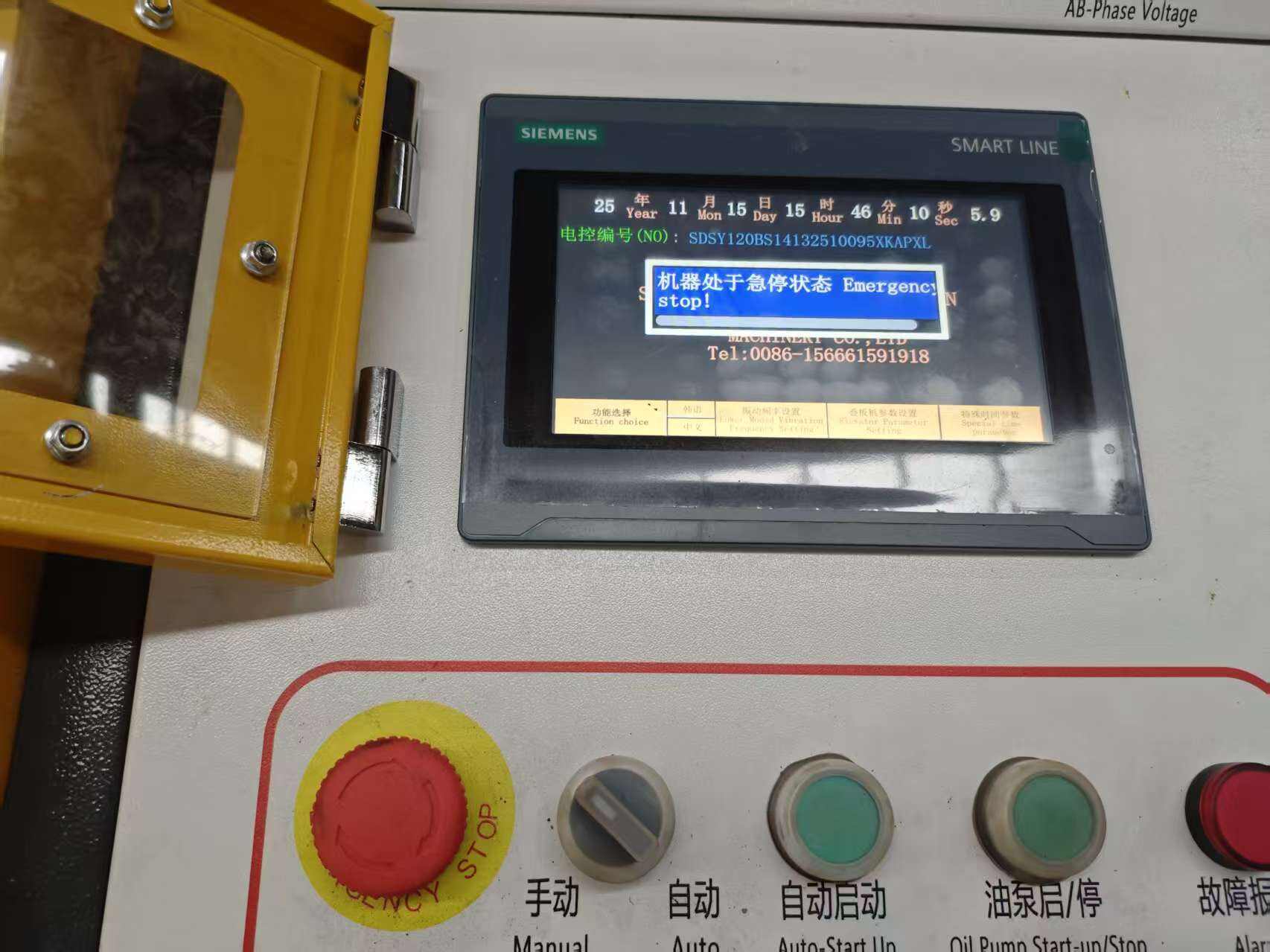

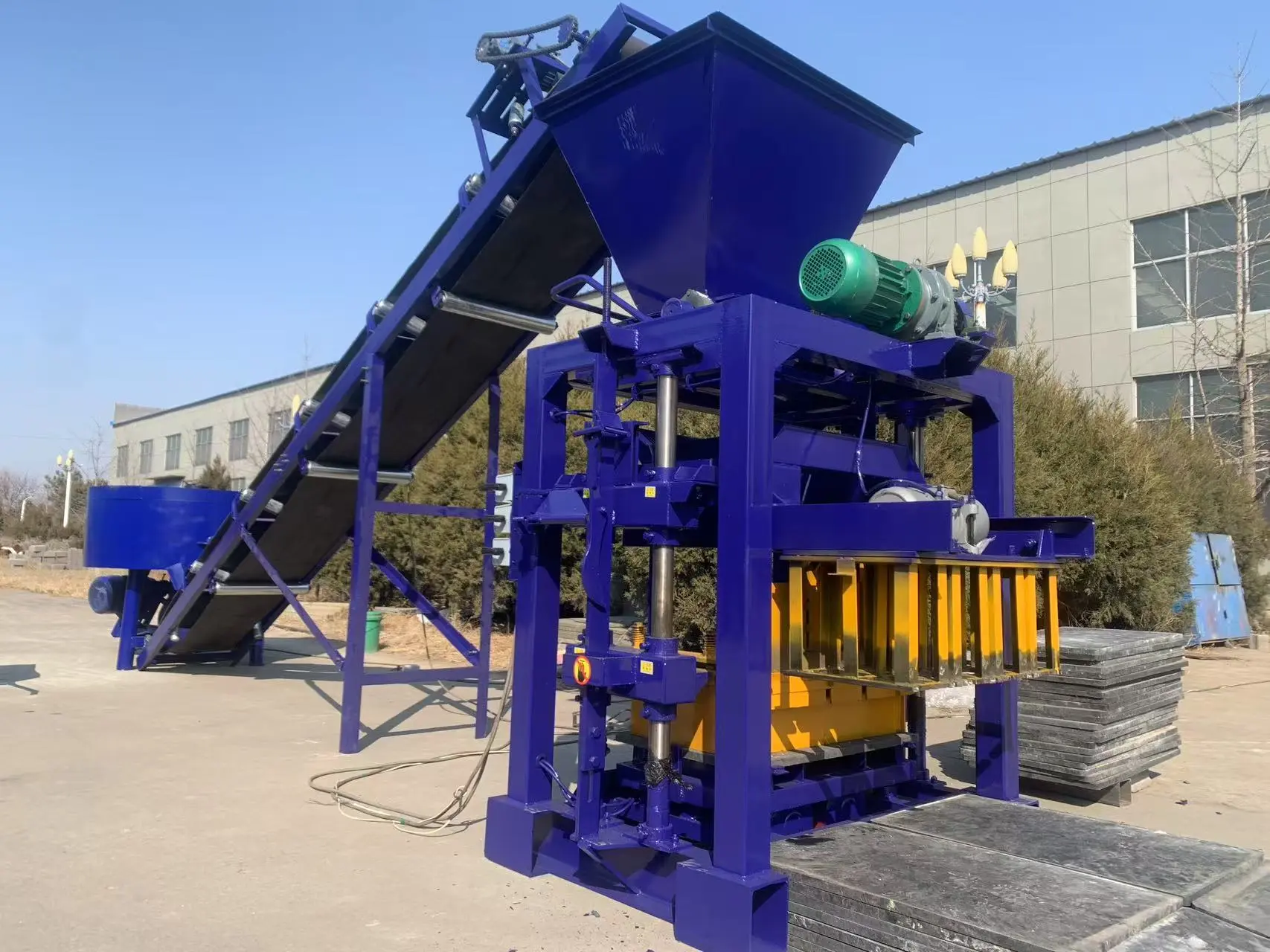

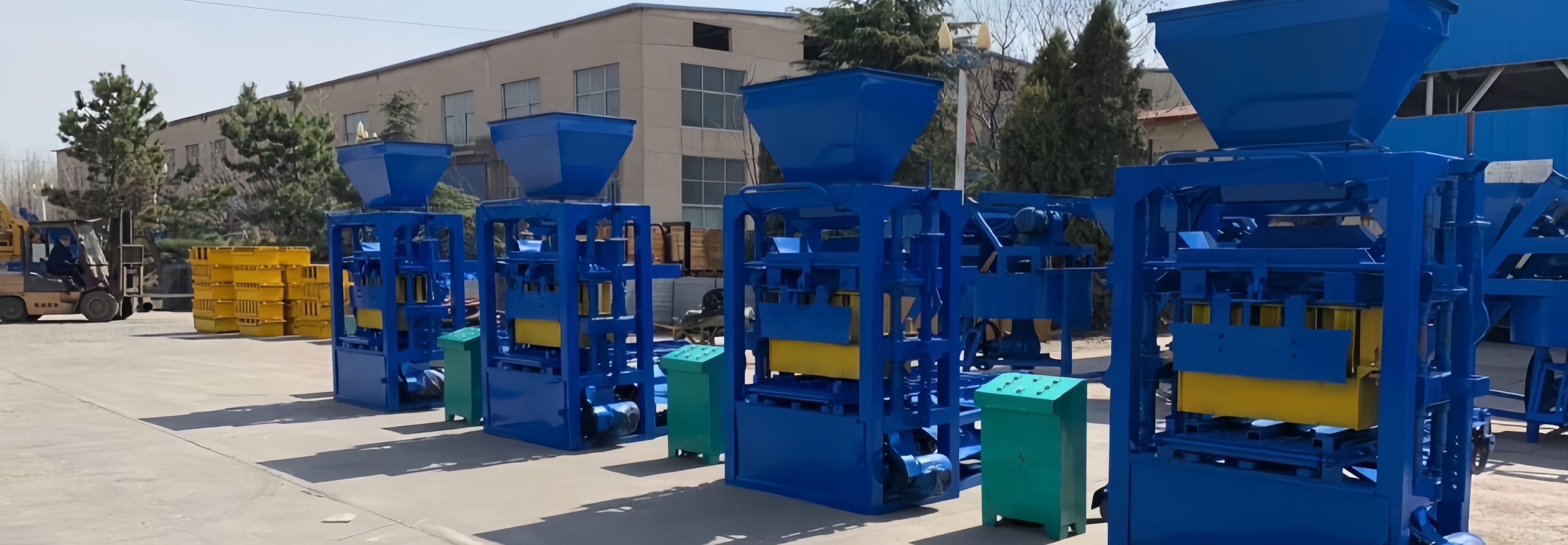

The semi-automatic brick making machine is easy to operate, eliminating the high-intensity manual operation of manual brick making machines, while retaining manual auxiliary links. It adopts buttons or simple touch screen control, with intuitive operation logic, flexible production, and wide adaptability. Changing molds can produce various brick materials such as standard bricks, porous bricks, road bricks, slope protection bricks, etc. It can quickly adjust product types according to market demand

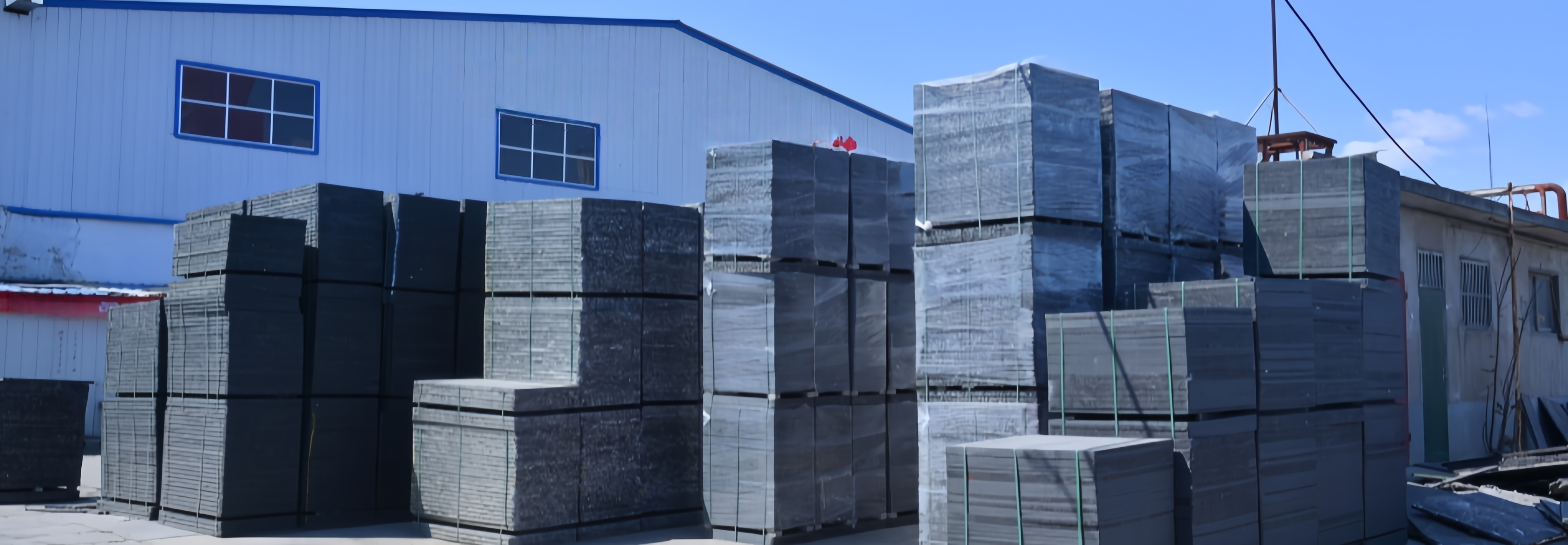

High strength, impact resistance, elastic modulus of up to 3.7GPa, bending strength of 51.0MPa, maximum load of 2.0kN, surface hardness of Shore 72, able to withstand the impact of brick making machine vibration and high-pressure forming, even if the pushing plate is stuck, it will not break. The impact resistance strength reaches 20KJ/m ², which is three times that of ordinary plastic pallets, and the wear resistance far exceeds that of bamboo, wood, and PVC pallets. After 2 uses, the bending strength still retains 95%; Simultaneously resistant to acid, alkali, and salt corrosion, it does not rust or mold in humid and high salt spray environments, with a water absorption rate of less than 0.5%, and maintains structural stability in environments ranging from -40 ℃ to 90 ℃. It is currently the preferred choice in the global brick making industry.
