High Strength and Load Bearing:
Made from GMT glass fiber reinforced thermoplastic, providing excellent strength and stable support for concrete blocks.
Wide Compatibility and Curing Use:
Suitable for various fixed and mobile brick machines, supporting both natural curing and steam curing.
Long Service Life and Cost Efficiency:
Outperforms wood, bamboo, and PVC pallets in durability, lifespan, and overall cost-effectiveness.

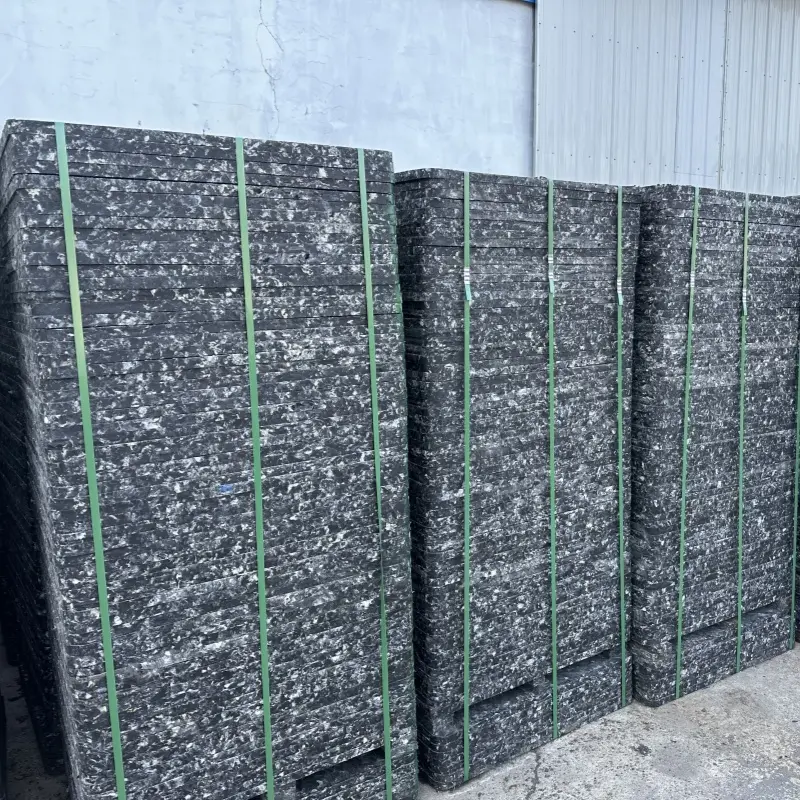

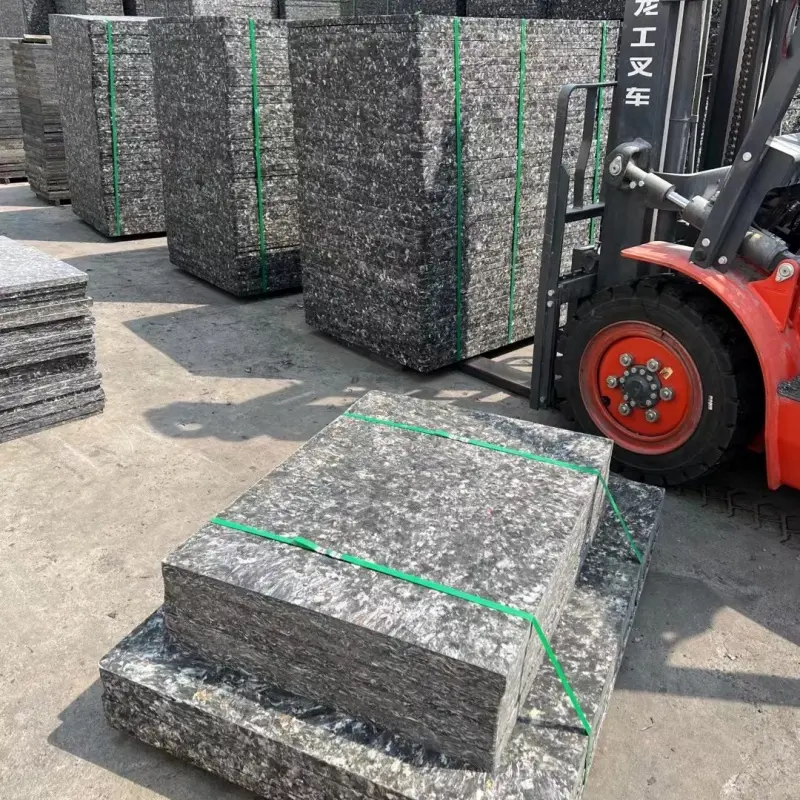

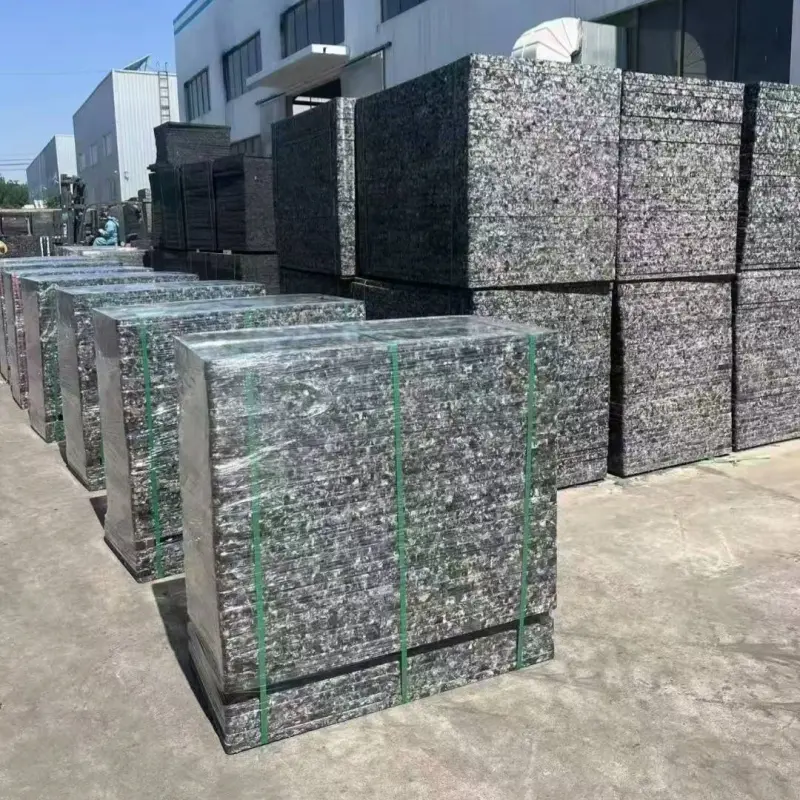

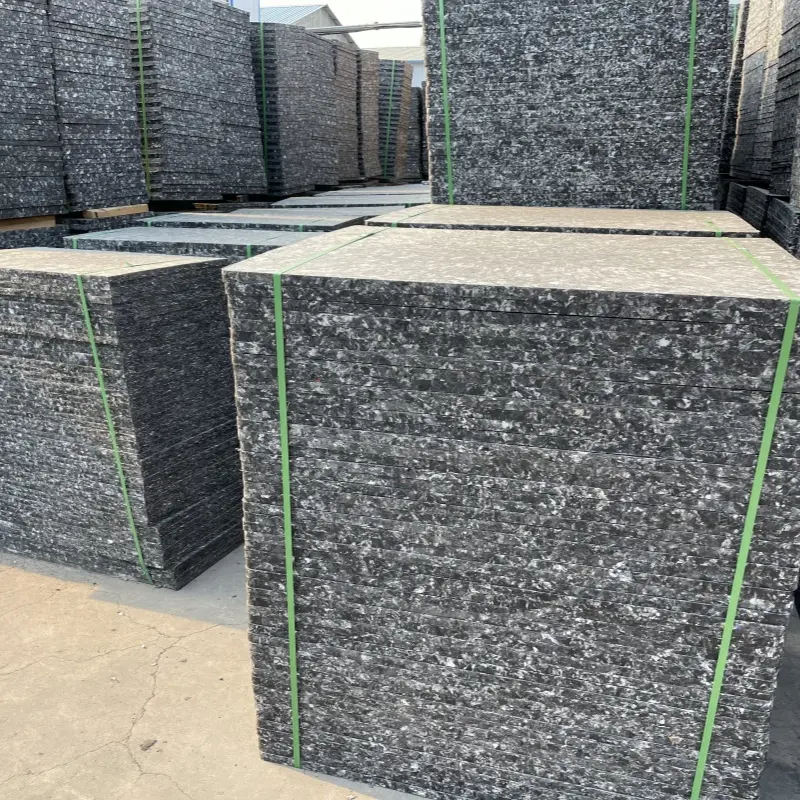

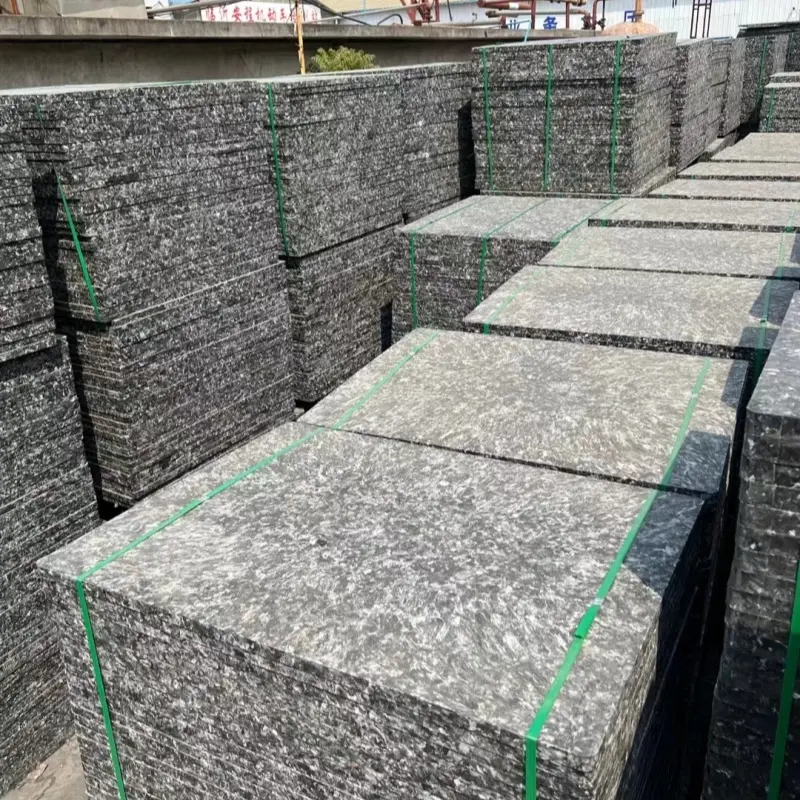

Black and white glass fiber brick machine pallet (commonly known as "glass fiber pallet", mostly GMT glass fiber felt reinforced thermoplastic composite material) is the core load-bearing consumable in the brick machine forming and curing process. It uses glass fiber as the reinforcement and thermoplastic resin such as PP as the substrate, and is molded into one at high temperature. It is available in black and white colors and is suitable for various fixed/mobile brick machines. It can stably carry concrete bricks and blocks, and is suitable for natural curing and steam curing. Its service life and comprehensive cost-effectiveness far exceed those of wooden, bamboo glue, and ordinary PVC pallets.
Performance |
Strength |
Quality |
Comparison |
Rigidity |
Elasticity Modulas 3.7 GP |
No Deformation |
More Rigid than same thicknesss solid wood pallet |
High LoadBearing |
Max load 2.0kn,BendingStrength 51.0 MPa |
Stand bigpressure, highload, and bringsno rupture |
Higher LoadBearing than samethickness PVC andsolid wood Pallet |
Anti-abrasion |
Rockwell Hardness 70 |
Long Life Span |
Better Performancethan plywood andbamboo woodPallet |
Anti-impact |
Withstand impact of 20KJ/m2 |
VibrationResistant,Anti-fall, and no Cracking |
Better Performancethan plywood andsolid wood Pallet |
1. Large, medium and small brick factories/scattered brick making projects
2. Batch production of bricks by large-scale building materials factories
3. Steam curing production line
4. Brick making in high-altitude/high-temperature areas
1. Outstanding durability: The pallet is made of multi-layer glass fiber warp and weft woven fabric and unsaturated polyester resin molded under high temperature and high pressure. The black and white dual color substrates have ultra-high density (≥ 1.8g/cm ³), with no gaps or layers inside. The static bending strength can reach over 80MPa, and the bending and folding resistance is excellent
2. Accurate and stable dimensions: Precision molds are used for processing, with length, width, and thickness tolerances controlled within ± 0.5mm. The surface is flat and smooth, and has a high degree of fit with the brick machine mold, effectively avoiding problems such as missing corners and deformation of the brick body during the brick making process. The qualified rate of finished bricks is increased by more than 10%.
3. Smooth and efficient demolding: The surface of the board has undergone special anti sticking treatment, and there is no adhesion or slag falling during the demolding of the brick blank. Combined with the automated production line of the brick making machine, the single demolding cycle can be shortened by 2-3 seconds, and the single shift production capacity can be increased by 8% -15%.
4. Lightweight design: Compared with steel pallets of the same specifications, it reduces the weight by 40%, making it easy to manually transport or mechanically grasp, reducing operational intensity and equipment wear and tear.
5. Long service life: Under normal working conditions, the service life can reach 8-12 years, which is 8-10 times that of wooden pallets and 5-6 times that of bamboo pallets, significantly reducing the frequency of pallet replacement and lowering production consumables costs.
