Home > Product > Concrete Flat Mouth Mixer > Electric Concrete Flat Mouth Mixer
Versatile Block Production：
Produces various types of building blocks like hollow, standard, and porous bricks.
Flexible and Adaptable：
Ideal for small and medium-sized block factories, rural housing, and urban infrastructure projects.
Low-Cost, Easy Setup：
Requires no complex infrastructure, enabling quick production start with stable performance.

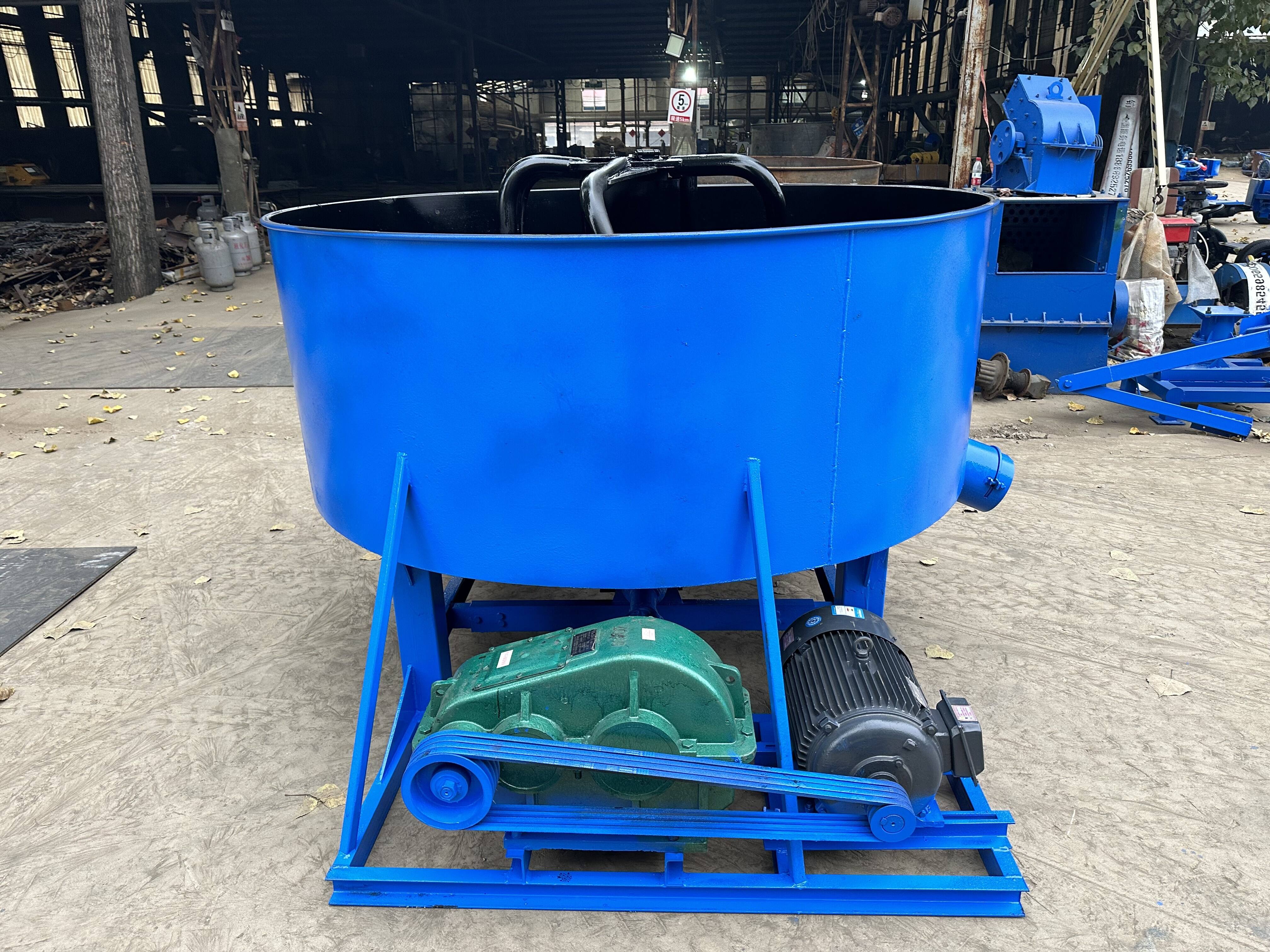

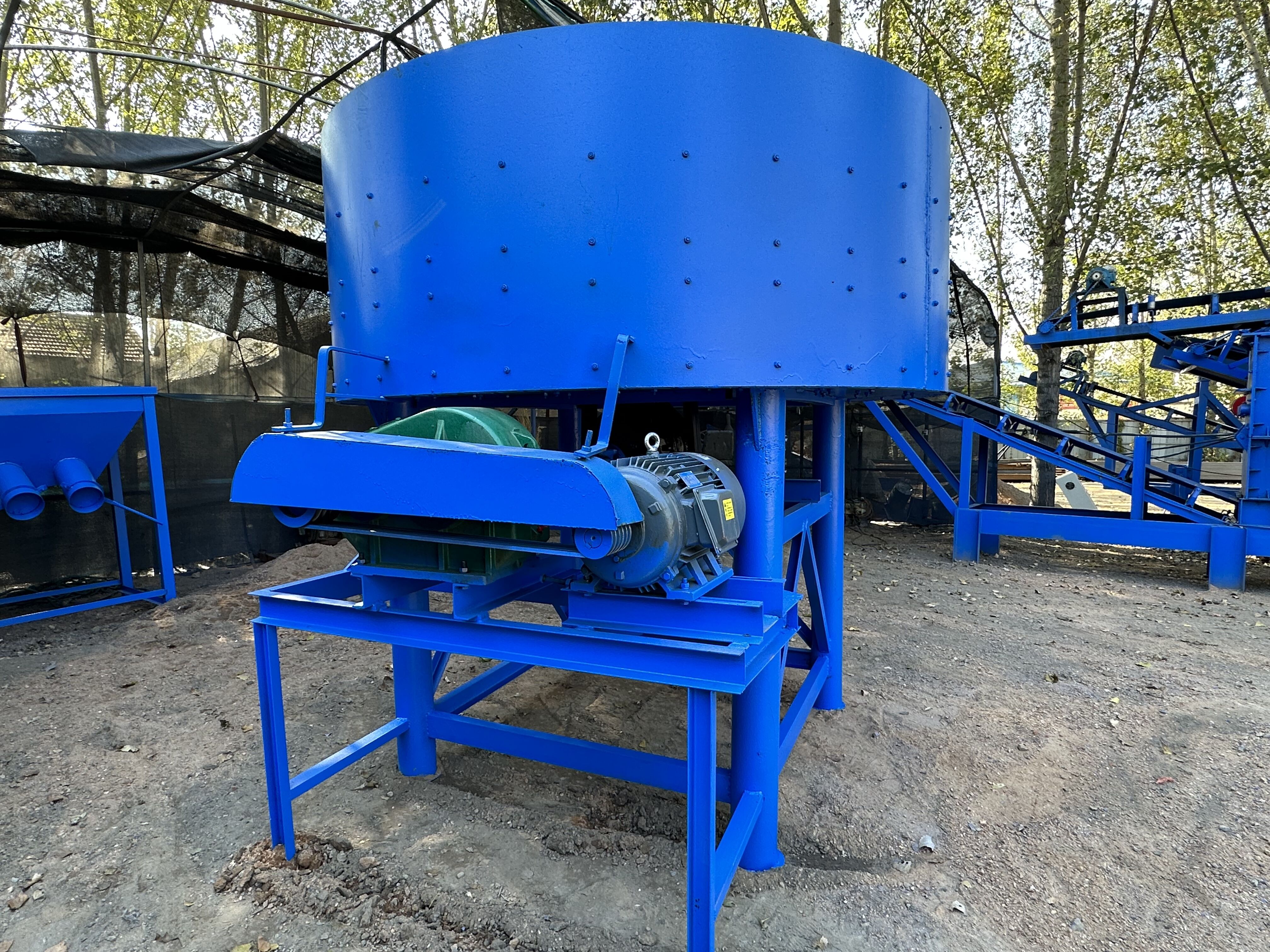

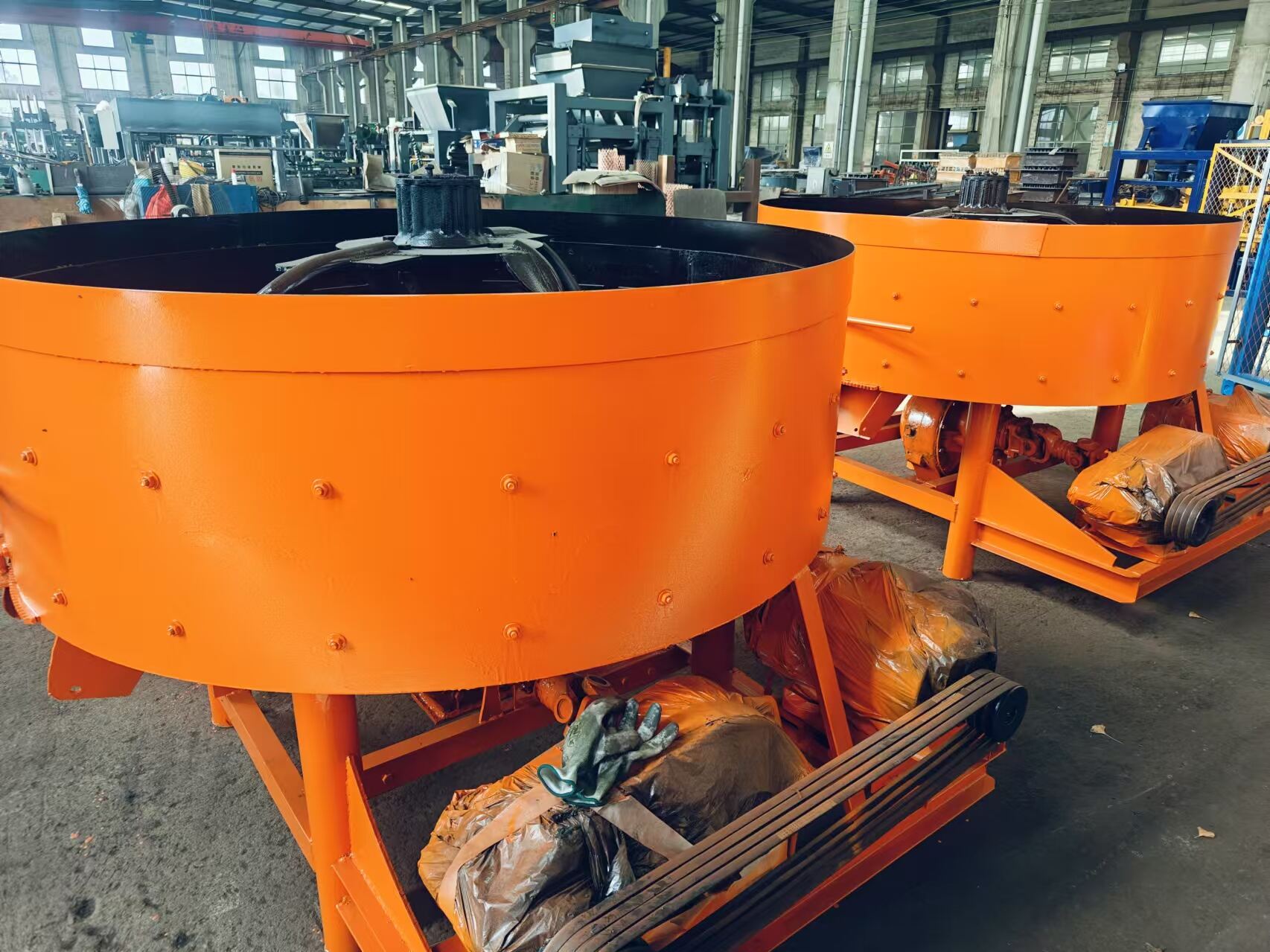

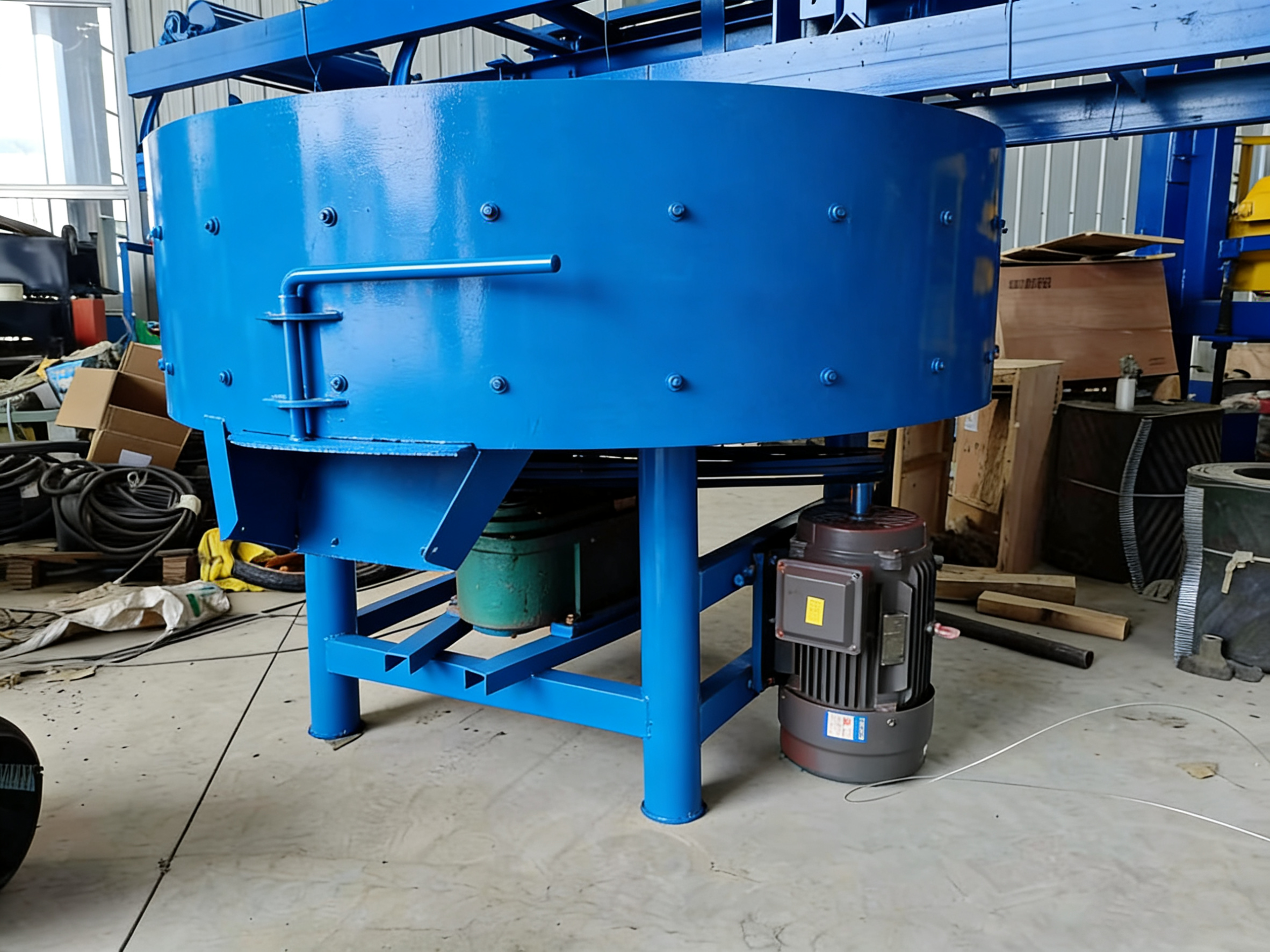

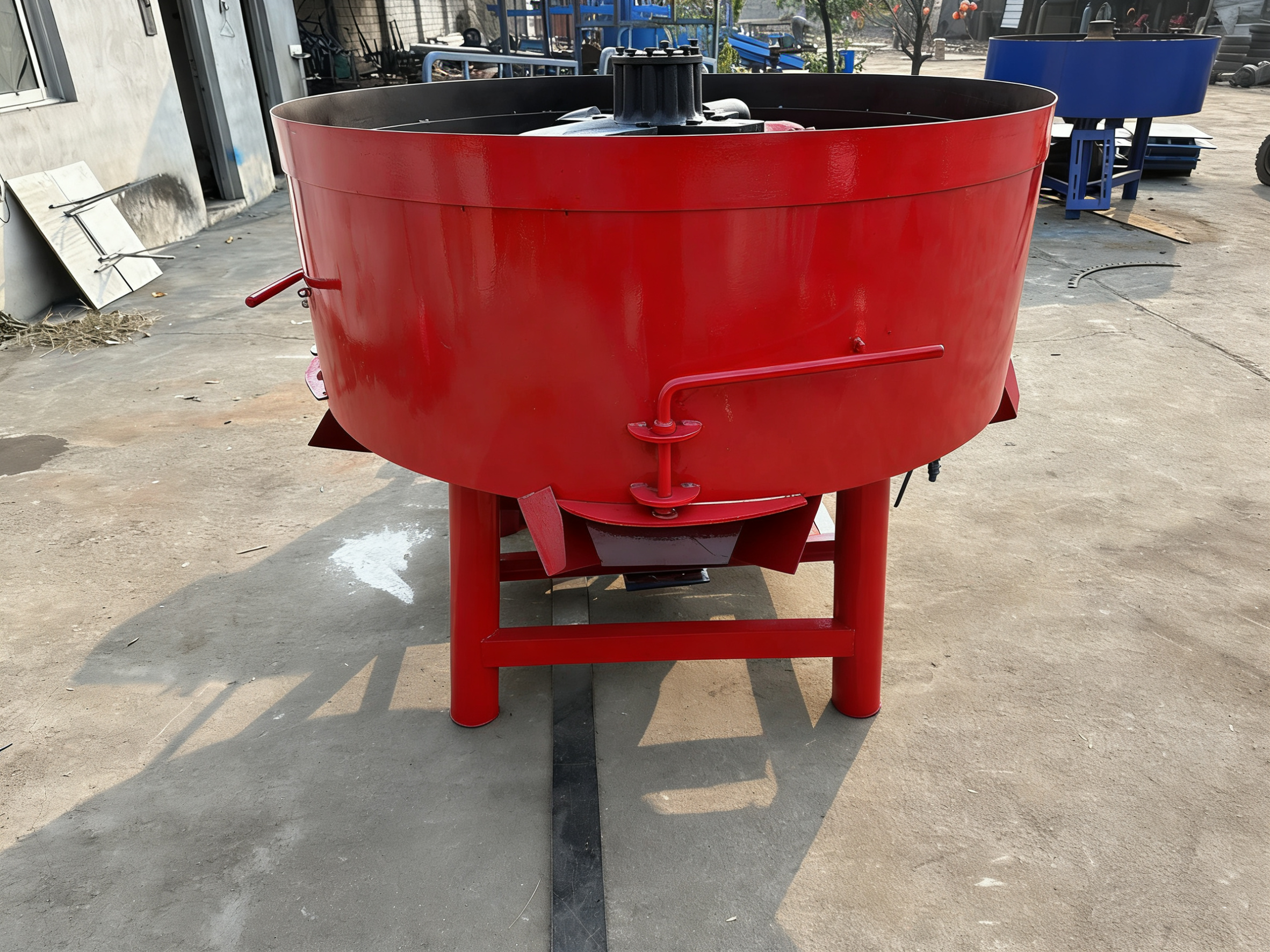

The concrete flat mouth vertical mixer (also known as the "forced flat mouth mixer" or "Chaotian pot mixer") is a small and medium-sized concrete mixing equipment that integrates loading, mixing, and unloading. It is named after the circular open mouth (flat mouth) of the mixing drum and the vertical arrangement of the mixing shaft. Featuring a compact structure, easy mobility, and high uniformity of mixing, it is suitable for construction sites, prefabricated component factories, small mixing plants, and rural infrastructure scenarios. It can mix plastic, dry hard, lightweight aggregate concrete, mortar, and other materials.
Model |
JW350 |
JW400 |
JW500 |
JW700 |
JW1000 |
Capacity |
500L |
600L |
750L |
900L |
1200L |
Feed quantity |
350L |
400L |
500L |
750L |
1000L |
Mixing arm speed/minute |
21 |
21 |
40 |
40 |
45 |
Motor power |
5.5 |
7.5 |
7.5 |
11 |
15 |
Overall dimensions |
1.25*1.25*1.2m |
1.5*1.5*1.35M |
1.6*1.6*1.4M |
1.8*1.8*1.5M |
2 * 2 *1.5M |
Whole machine weight |
400KG |
600KG |
750KG |
950KG |
1200KG |
1. Small building materials factory/individual brick factory
Serving the county and rural markets, producing commonly used brick types such as standard bricks and hollow bricks to meet the needs of residential construction and rural infrastructure. Suitable for production entities with limited funds and moderate production capacity, with low requirements for site and labor.
2. On site brick making at construction sites
Deploy on the construction project site, produce concrete bricks and other engineering bricks to reduce transportation costs, produce according to demand and adapt to the construction period, and can dispose of construction waste to produce recycled bricks, which meets the needs of environmental protection and engineering efficiency.
3. Customization of special brick types
Relying on the advantage of flexible mold changing, we undertake small-scale customized brick production that is difficult to cover with fully automated production lines, adapt to the needs of special specifications and shapes of brick shapes, and make up for the flexibility shortcomings of large-scale production.
1. Capacity adaptation for small and medium-sized needs: Single mode can produce 4 standard bricks (400 * 200 * 200mm), with a stable molding cycle controlled at 25 seconds per mold. The theoretical hourly output is about 576 bricks, and the daily (8-hour working system) production capacity exceeds 4500 bricks. It can meet the centralized brick demand for rural construction and small-scale projects, without causing waste of raw materials and site due to overcapacity.
2. Stable quality of finished products: Equipped with an automatic pressure control system, the pressing force is precise, the compactness of the brick body is high, and the uniformity of the fabric is improved, avoiding the problem of uneven brick density caused by semi-automatic manual fabric. The qualified rate of finished products exceeds 98%.
3. Core configuration: Equipped with an automatic feeding machine and a spiral conveying system, the raw material particle size is adapted to ≤ 5mm sand and gravel, fly ash, and recycled aggregates from construction waste; The control system adopts a simple touch screen, which can store 5 sets of production parameters and support automatic fault alarms (such as raw material shortage and abnormal pressure). Novices can operate it after 30 minutes of training; The body can be equipped with a dust cover, suitable for brick factory environments with high dust levels.
4. Controllable investment: Compared to fully automatic hydraulic brick making machines, the procurement cost is reduced by more than 70%, making it suitable for small users with limited budgets but pursuing automation; Low energy consumption, combined with automation to reduce labor costs, reduces annual operating costs by 30% compared to semi-automatic models.
5. Convenient maintenance: Core components (such as forming oil cylinders and conveyor motors) are selected from mature domestic brands, and accessories are easy to purchase and have low prices; The equipment structure is simplified, and troubleshooting is intuitive. Daily maintenance only requires regular cleaning of the fabric system and inspection of hydraulic oil, without the need for a professional maintenance team, reducing the maintenance threshold for small and medium-sized users.
1. What payment methods are supported?
Alibaba platform payment
Bank transfer: Supports corporate account transfers (available for large orders, please contact customer service for confirmation);
Note: All payments are processed with SSL encryption to ensure the security of your funds and information.
2. Can you provide an invoice?
International orders: A commercial invoice will be provided and shipped with the goods for customs clearance purposes.
3. Are there discounts for large orders?
Yes! For bulk purchases or long-term cooperation customers, please contact customer service to apply for tiered discounts, customized solutions, or exclusive services. Specific discounts will be negotiated based on the product and order size.
4. What are the product usage steps? Is there a detailed user manual?
We will include a product manual, and remote video guidance is available during installation. Our professional customer service team will answer any questions you may have.
5. What is the product warranty period?
The product warranty is 1 year, core electrical components have a 6-month warranty, and the fiber tray has a 6-year warranty.
6. Are there any additional fees at the destination port? Who is responsible for them?
Common fees at the destination port must be settled by the consignee upon collection of the goods, including:
Terminal handling fee (D/O fee): Basic unloading and warehousing fees at the destination port;
Unpacking fee (for LCL shipments only): Shared among all LCL cargo;
Import duties and taxes: Customs duties and Value Added Tax (VAT), levied according to the regulations of the destination country's customs;
Demurrage charges: Storage delay fees charged by the terminal if the goods are not collected promptly after arrival.
7. How long after arrival at the port must the goods be collected? What are the consequences of not collecting the goods?
Collection time limit: The free storage period after the goods arrive at the port is usually 3-7 days (varies depending on the port);
Consequences of exceeding the time limit: Demurrage charges will be applied (accumulated daily). If the goods are not collected for more than 30 days, the terminal has the right to auction the goods as unclaimed cargo.
8. What if the goods are damaged, lost, or short-shipped?
Claim Requirements: Marine insurance must be purchased (strongly recommended for high-value goods);
Processing Procedure:
Inspect the goods immediately upon delivery. If any problems are found, take photos/videos immediately and obtain a damage certificate from the terminal;
Contact customer service within 24 hours to submit a claim application and supporting documents;
After verification by the insurance company, compensation will be paid within 7-15 business days based on the value of the goods.
Without insurance: The shipping company will only compensate according to international maritime law, with a limit of 8.33 Special Drawing Rights (SDR) per kilogram.
Linyi Yaoda Machinery Co., Ltd. provides fully automatic brick making machines, AAC block equipment, and concrete mixers for global construction. Precision-engineered (±0.01mm), ISO-compliant, exported to 60+ countries. Trusted by 500+ clients. Request a quote today.
